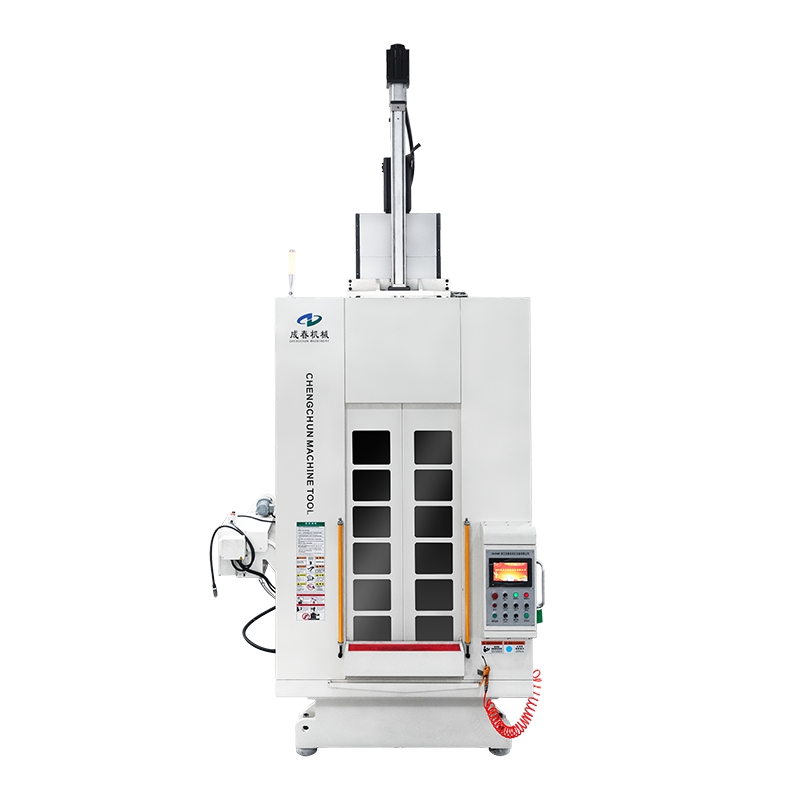

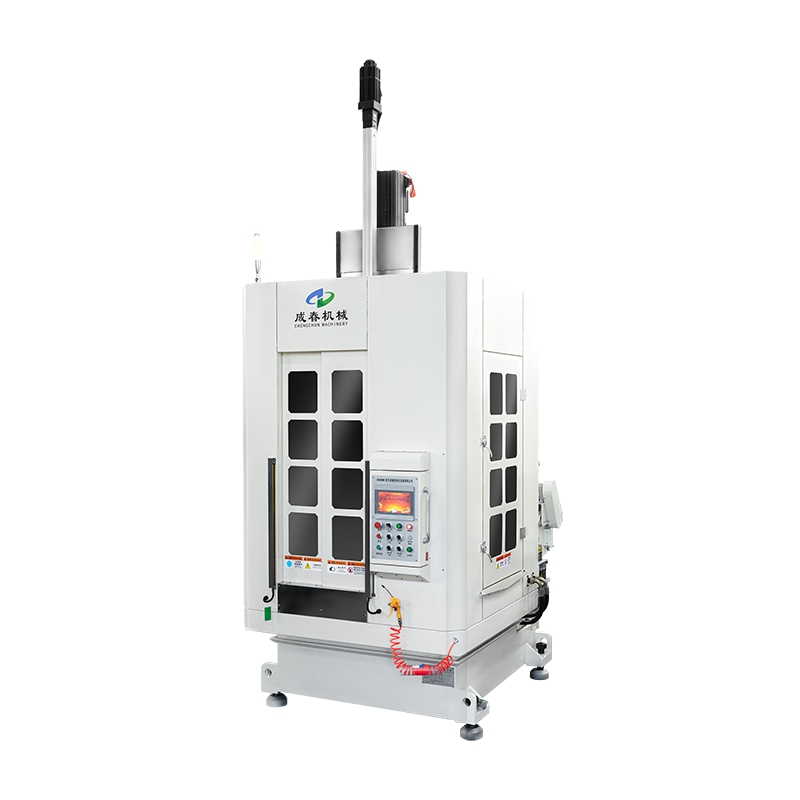

High Efficiency 5-30 Ton CNC Vertical Internal Spline Broaching Machine

Product Description

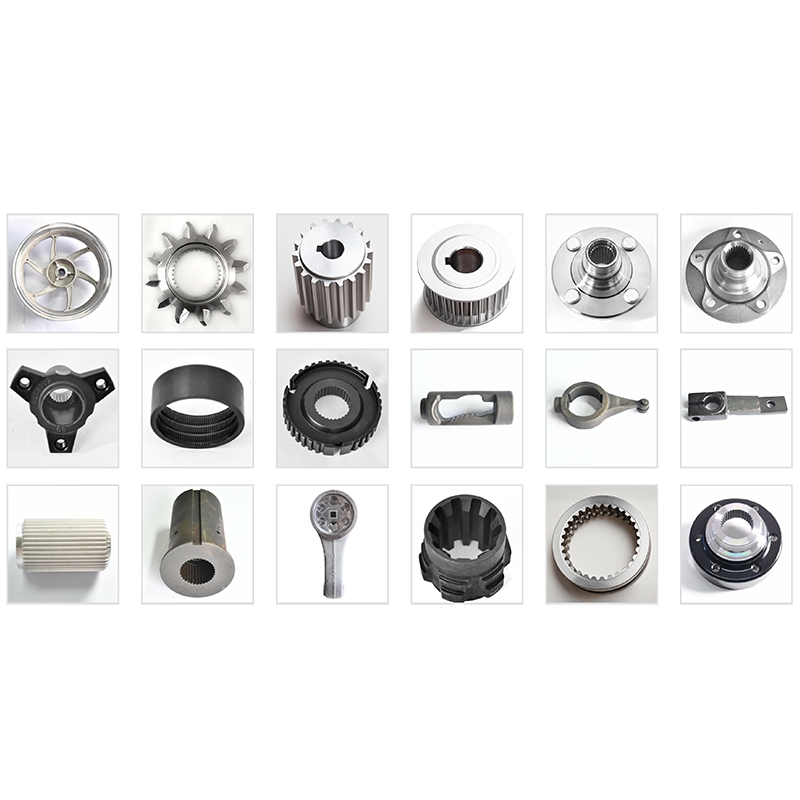

Our CNC Vertical Internal Broaching Machine is engineered for high-precision and high-efficiency internal profile machining. Featuring a robust vertical design and advanced CNC control, it delivers exceptional accuracy and surface finish for the mass production of splines, keyways, and complex internal shapes.

Key Features & Advantages

1. 70% Energy Savings & ISO 1328 Grade 5/7 Precision

Unlike traditional hydraulic broaching machines, our advanced drive system reduces energy consumption by up to 70%, significantly lowering your long-term operational costs. Meanwhile, the high-rigidity structure and high-speed cutting capability guarantee exceptional gear precision up to ISO 1328 Grade 5/7. This makes it a highly efficient and cost-effective alternative to costly gear grinding processes.

2. Compact Footprint for Optimized Floor Space

Space is a premium in modern manufacturing. Our machine features a highly integrated, compact design that significantly reduces the overall footprint. This space-saving structure allows for higher machine density in your workshop and seamless integration into existing automated production lines.

3. Turnkey & Customizable Solutions for Unique Needs

We understand that every gear manufacturing project is unique. Beyond our standard models, we offer comprehensive tailor-made services. Whether you need specific fixture designs, specialized carbide broaching tools, or custom automated loading/unloading systems, our engineering team will build a solution strictly according to your special requirements.
